Mutoh XPJ1462UF

1420 x 700 mm Flatbed Direct-to-Object Printer

Category: Tag:

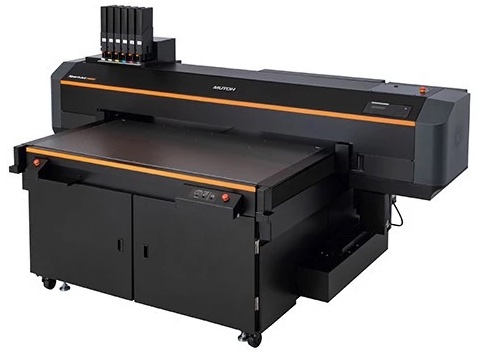

The Mutoh XpertJet 1462UF is a 6 colour (C, M, Y, K, Wh, Va) UV LED flatbed direct-to-object printer with moving gantry, offering an impressive 1420 mm by 700 mm table size. It can print on items up to 150 mm thick. Carrying Mutoh’s prestigious “Made in Japan Quality” seal, the 1462UF features a sturdy chassis and a 4-zone magnetic vacuum bed supporting weights up to 50 kg/m².

Say goodbye to limitations and hello to excellence! With two staggered print heads for independent CMYK and White/Varnish printing and two brand new 4” wide UV curing lamps, you’ll achieve flawless 2-layer printing without compromising speed.

Experience maximum versatility: the XPJ-1462UF enables simultaneous printing of multiple substrate sizes on the same table. Our genuine VerteLith RIP software integrates multiple features dedicated to UV printing : multi page PDF to support variable data, creation of jigs, emboss printing presets and a structure library with 100 different texture patterns. 2.5D printing made easy!



Product Highlights

  • 6 colours – C, M, Y, K, White & Varnish
  • 1420 mm (55.9”) x 700 mm (27.5”) table size
  • Four zone magnetic vacuum bed - weights up to 50 kg/m²
  • Can print on items up to 150 mm (5.91”) thick
  • Automated media height & obstacle detection
  • Two piezo drop on demand inkjet heads, staggered setup for fast multi-layer printing.
  • Two new 4” (101.6 mm) multi-segment UV LED curing lamps
  • Automated nozzle check unit reduces loss of prints and downtime.
  • Bundled with Mutoh genuine VerteLith RIP software
  • Next generation UV LED ink – SVHC & CMR free, stretchable, scratch resistant and wide media compatibility
