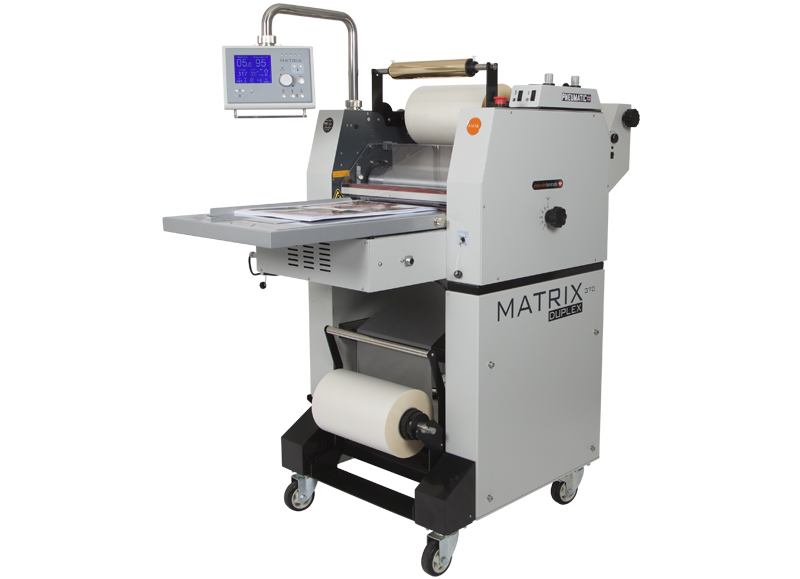

Matrix MX-370DP

The Duplex option is produced in Britain with the highest quality components within the system, including Omron switches and Schneider electrics.

Description

The Duplex option is produced in Britain which shortens our supply chains and lead times.

We’ve used the highest quality components within the system, including Omron switches and Schneider electrics.

The MX-370DP can also be partnered with the Matrix Auto-Feeder to save time and money, fully automating your print finishing workflow.

Take a look at the full range of accessories available for the Matrix.

Key Features

  • Pneumatic pressure
  • Multifunctional – laminate, foil & create spot UV-style effects
  • Laminate both sides at the same time
  • Easy-to-use control panel
  • Anti-curl technology
  • Semi-automatic feed
  • Automatic separator

Great for use in

  • Commercial printers
  • Digital printers
  • Copy and print shops

Ideally suited for

  • Business cards
  • Wedding stationery
  • Menus
  • Book covers
  • Brochures
  • Flyers
  • Bespoke foiled packaging
<!-- [et_pb_line_break_holder] -->
<!-- [et_pb_line_break_holder] -->

Specification

Encapsulating Speed (mm/min / inches/min) 1000 / 39
Max. Laminating Speed (m/min / feet/min) 10 / 33
Max. Laminating Film Width (mm / inches) 340 / 13
Paper Thickness (gsm / lbs) 100+ double-sided / 67-0
Warm-up Time (mins) 10
Laminating Temperature Range (°C/°F) 0-140 / 32-284
Control Panel Multilingual LCD
Pressure Adjustment Pneumatic
Film Core (mm / inches) 77 / 3
Power Supply AC (v, 50Hz) 220/240
Power Supply AC (v, 60Hz) 240
Power Supply Required (Amps) 32
Power Consumption (W) 4500
Foiling, Holographic, Glitter Lamination & Spot UV-style effects Yes
Dimensions – Width (mm / inches) 800 / 31
Dimensions – Depth x Height (mm / inches) 1800×1400 / 71×55
Gross Machine Weight (Kg / lbs) 220 / 485
